Technology Deep Dive

Inside ENSIS: Variable-Beam Optics, AMNC Control & AMADA Care

A technical anatomy of the four engineering blocks — resonator, control, CAM pipeline and connected service — that together define what "AMADA-grade" means on the shop floor.

01 · Resonator Architecture

The ENSIS Variable-Beam Concept

Conventional fiber sources expose the cut with a fixed beam profile: excellent at one thickness band, compromised at others. The ENSIS resonator pairs AMADA's proprietary fiber coupling with a dynamic beam-shaping lens group — profile and spot-size shift on command, inside a single nest, without operator intervention.

Practical consequence: a single machine cuts 1–2 mm stainless detail work and 16 mm mild-steel contours on the same plate, with a documented edge class for each band. The two-pass trade-off disappears.

Single-mode precision band — M² < 1.1 for thin-sheet cosmetic edges
Thick-plate wide-beam band — optimized kerf for N2 high-pressure cuts
Beam transition time measured in milliseconds, commanded by AMNC G-code block
Wavelength 1064 nm with documented power stability at ±1%

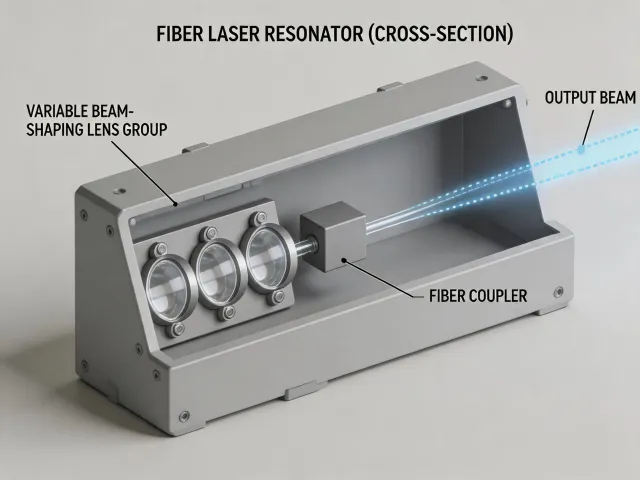

ENSIS variable-beam resonator cross-section diagram

02 · Control Stack

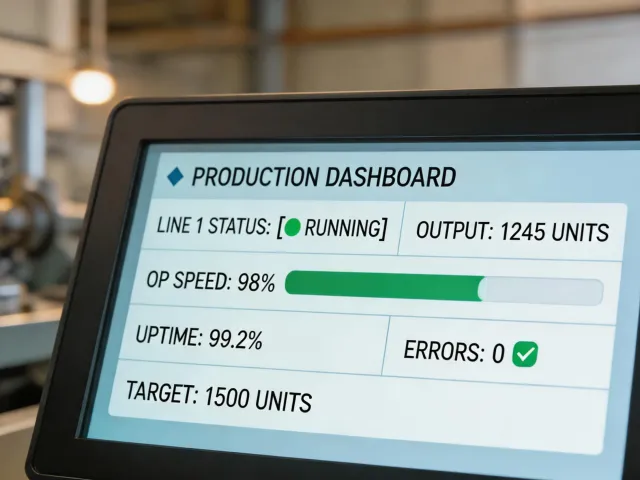

AMNC 4ie — Operator UX From Punch to Press Brake

AMNC 4ie is the unified controller across ENSIS, LC-ALPHA, EMZ turret punch and HG-ATC press brakes. The same touch gestures, the same job queue, the same operator model — a meaningful competitive moat for fabricators running mixed AMADA lines.

Every machine ships with network hooks for MES, ERP and MIS — job tickets, quantity-complete counts and consumable alerts flow directly into the shop-floor dashboard.

Shared AMNC 4ie touch UX across laser, punch and press brake
Native ERP / MES integration via AMADA's open job-ticket protocol
On-controller ABC process library — recalls validated material recipes
Multi-language operator panels (EN / ES / FR / JA) shipped as standard

03 · CAM Pipeline

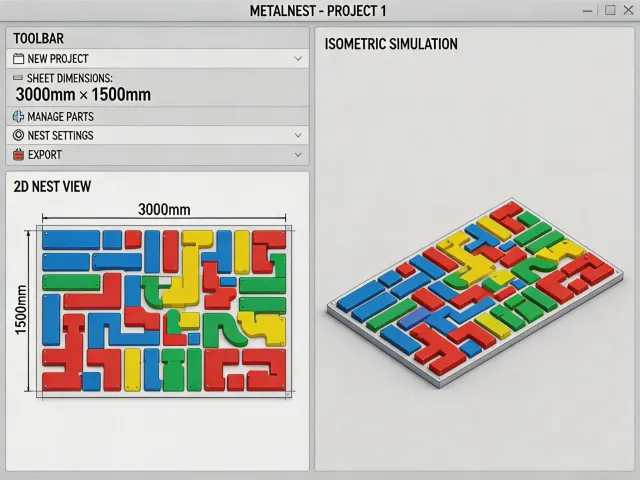

VPSS 3i — The Offline Brain Behind Every Nest

VPSS 3i is AMADA's integrated CAM suite: part import, nesting, bending simulation and production-costing inside one model. Programs transfer straight to AMNC 4ie controllers with zero shop-floor re-interpretation.

VPSS 3i includes nesting algorithms tuned for ENSIS variable-beam behavior — generating recipes that exploit mid-nest beam shifts rather than forcing one profile across the whole sheet.

Parametric part library — STEP / DXF / IGES import
ENSIS-aware nesting: 8–14% material yield improvement on typical mixed job-shop nests
Bend simulation catches collisions and tool-lift errors before first bend
Costing module projects cycle time, gas and power cost at quote stage

04 · Connected Service

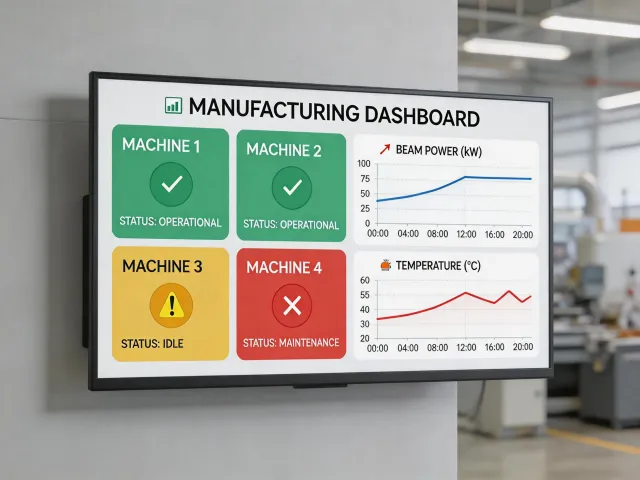

AMADA Care — Predictive Uptime, Not Reactive Repair

AMADA Care streams beam power, optics temperature, chiller pressure, servo current and door-interlock state to a secure cloud tenant per customer. Patterns that historically preceded a failure — chiller drift, servo overcurrent spikes, optics-cleanliness slope — now trigger service dispatch before a line-stop.

Service outcomes are tracked continent-wide: North American customers average 98%+ scheduled uptime across the AMADA Care fleet (trailing 12-month window, regional audit).

2- to 4-hour remote engineer triage for critical-line customers
Regional spare-parts hubs — US, Canada, Mexico
Factory-trained field engineers with AMADA certification renewal every 24 months
Optional shift-coverage SLA aligned to customer working-hour calendar

Platform Matrix

Characteristic Ranges Across the Fiber Portfolio

Characteristic values drawn from published AMADA product literature. Actual deliverables depend on configuration; please request a specification dossier for guaranteed numbers on a given build.

Platform	Power Class	Sheet Size	Max Mild Steel	Beam Architecture
ENSIS 3015 AJ	3 – 9 kW	3000 × 1500 mm	25 mm	Variable-beam fiber
LC-ALPHA	12 – 20 kW	4000 × 2000 mm	36 mm	High-power fiber, N2 pressure
ENSIS-AJe Tube	3 – 6 kW	Ø 20 – 254 mm tubes	16 mm (tube wall)	Variable-beam fiber
LC-C1AJ Combo	2 – 3 kW laser + 30 ton punch	1250 × 2500 mm	8 mm	Fiber + turret punch hybrid

Need a Parameter Sheet?

Request the ENSIS Technical Dossier.

Includes resonator spec, cut-quality matrix (ISO 9013 edge class), gas-consumption table, footprint diagram and AMNC 4ie control screen layout.
